96GB Blackwell: SGLang NVFP4 + DFlash2 vs vLLM BF16, Measured

On one RTX PRO 6000 Blackwell 96GB, keep a BF16 vLLM baseline. Use the NVFP4 SGLang lane only after its client contract and thermal limit pass: it reached 141.49 output tok/s, retrieved from 261,494 prompt tokens, and peaked at 91°C.

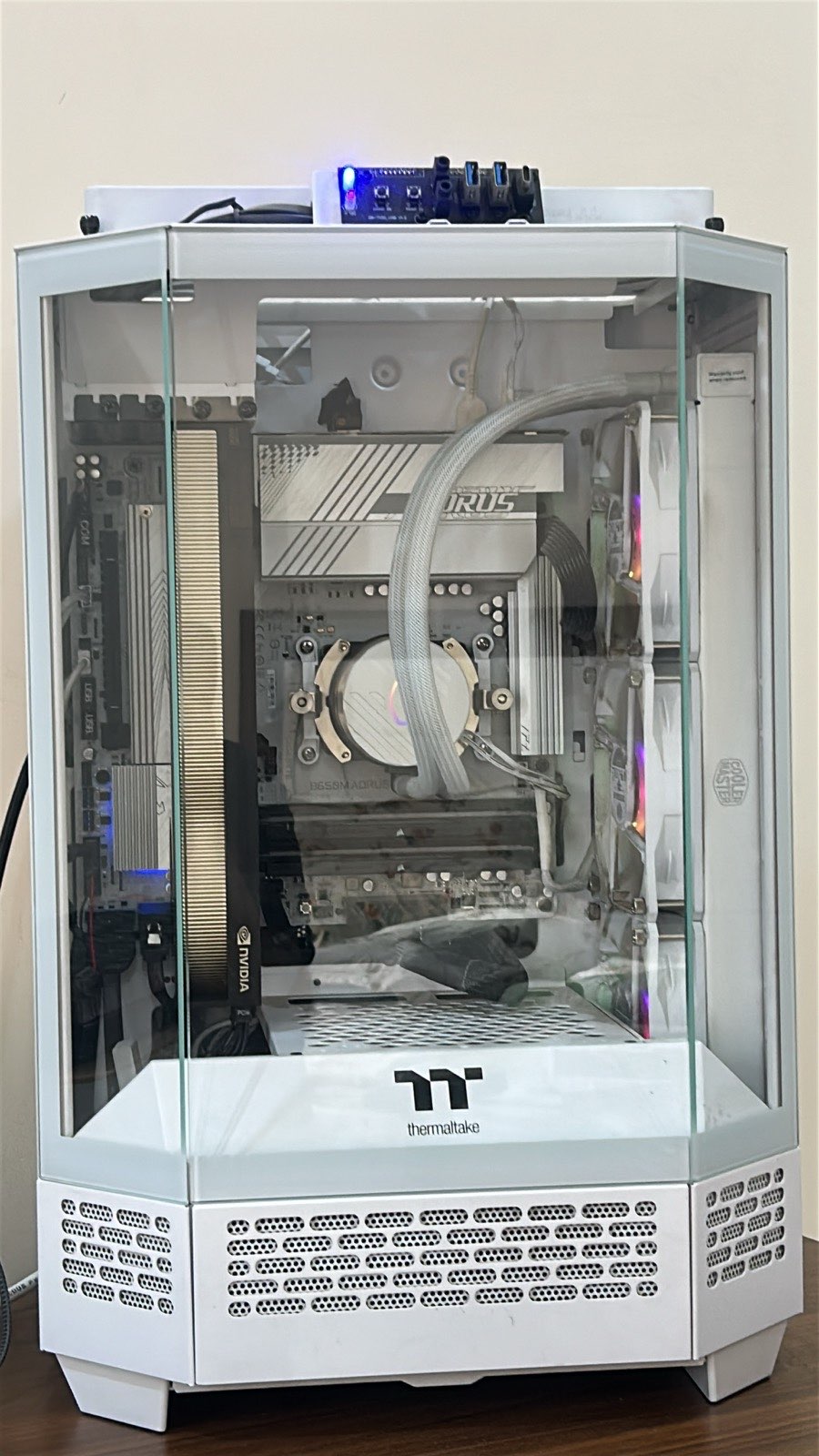

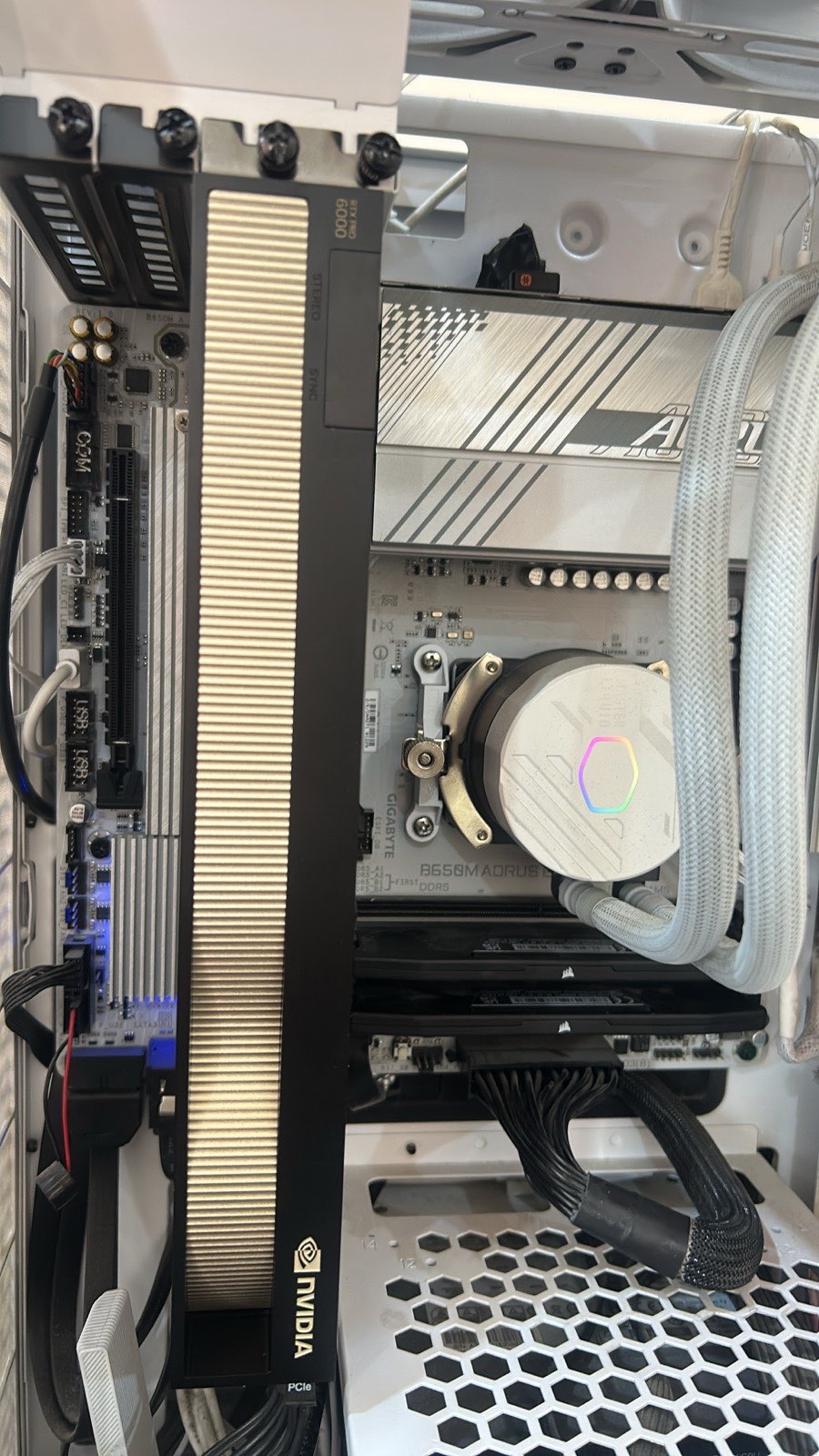

This 21 August 2026 cutover ran Qwen3.8-27B on one RTX PRO 6000 Blackwell Max-Q with 96GB VRAM and about 60GB host RAM.

1. Scope

This guide covers one machine and one cutover: Qwen3.8-27B on a single RTX PRO 6000 Blackwell Max-Q (96GB VRAM, ~60GB host RAM), run on 21 August 2026. It compares a vLLM 0.24 BF16 baseline against an SGLang NVFP4 lane with DFlash2 speculative decoding, with measured throughput, latency, VRAM, and thermal numbers for each. Read it before you plan a local lane on a 96GB Blackwell card; skip it if your target is multi-GPU or sub-30GB hardware.

2. What 96GB buys on Qwen3.8-27B

Qwen3.8-27B has 64 layers: 16 groups of three Gated DeltaNet linear-attention layers and one Gated Attention layer. Its 262,144-token native context also needs KV, recurrent state, CUDA graphs, and workspace.

Item	Measured / reported
GPU VRAM	97,887 MiB visible (“96GB”)
BF16 Qwen3.8-27B checkpoint on disk	51.77 GiB
vLLM BF16 lane at 262K	445,568 GPU-KV tokens; ~90.7 GiB VRAM after init
SGLang NVFP4 lane at startup	Target 20.14 GB + draft 3.72 GB; ~86.3 GB VRAM; 590,058 KV-token capacity

At 262K, BF16 left about 14 GiB host RAM with swap disabled. A projected 524K BF16-KV lane was about 88 GiB and remains unverified.

3. Keep a baseline, then add a capacity lane

The vLLM 0.24 BF16 baseline used --max-model-len 262144, BF16 KV, chunked prefill, prefix caching, 32 GiB CPU KV offload, qwen3, qwen3_coder, and three-token MTP. Needle retrieval took 43.07s at 128K and 115.31s at 250K. SGLang dev kept port 8000 and alias qwen3.8-27b with an NVFP4 target and DFlash2 draft.

sglang serve --trust-remote-code \
  --model-path RadixArk/Qwen3.8-27B-NVFP4 \
  --served-model-name qwen3.8-27b \
  --kv-cache-dtype bfloat16 --mem-fraction-static 0.85 \
  --max-running-requests 4 --max-mamba-cache-size 20 \
  --attention-backend flashinfer --chunked-prefill-size 2048 \
  --reasoning-parser qwen3 --tool-call-parser qwen3_coder \
  --speculative-algorithm DFLASH \
  --speculative-draft-model-path z-lab/Qwen3.8-27B-DFlash2 \
  --speculative-num-draft-tokens 8 \
  --mamba-radix-cache-strategy extra_buffer --mamba-ssm-dtype float32

DFlash2 was the difficult part. Engine, NVFP4 weights, draft model, and scheduler changed, so results describe the lane. Setup took longer than expected. If you’re replicating this, budget for it. It paid off: before this lane I was on vLLM with MTP, and MTP was not working well on this card. SGLang says gains vary by model, hardware, and configuration in its speculative-decoding documentation.

4. Lane comparison: choose by the work

My take: keep vLLM as the BF16 comparison point; use SGLang for the smaller footprint and aggregate output, but only after the smoke and thermal checks pass.

Lane	Config	VRAM after init	Measured throughput
vLLM baseline	vLLM 0.24, BF16, 262K	~90.7 GiB	Not measured
SGLang capacity	Dev, NVFP4 + DFlash2, c4	~86.3 GiB	141.49 serial; 408.62 c4 tok/s

Latency and context checks: vLLM 128K in 43.07s, 250K in 115.31s (short-output throughput and TTFT were not collected). SGLang median TTFT 44.6 ms; 261,494-token retrieval in 99.95s.

The smoke suite returned the alias, correct non-thinking content, and reasoning_content with 60 reasoning tokens. It accepted chat_template_kwargs and correct tool_calls. /version was absent; /metrics returned 404 because metrics were disabled.

The 21 August artifact used 1,024-token outputs unless noted:

Workload	Observed	What it establishes
Serial, 1,024-token output	141.49 tok/s median end-to-end; 44.6 ms median TTFT	Short-prompt sustained decode
Concurrency 2	281.31 aggregate tok/s; p50 TTFT 204.7 ms	Aggregate throughput at c2
Concurrency 4	408.62 aggregate tok/s; p50 TTFT 83.8 ms	Aggregate throughput at configured cap
Full native context	261,494 prompt tokens (99.75% of 262,144); TTFT 99.95 s; needle correct	Native-limit prefill and retrieval

DFlash acceptance ranged 0.22–0.74 across workloads, with mean accepted draft length 2.5–6.2 tokens. Across 137 one-second samples, utilization averaged 98.26%, temperature 85.89°C, and peaks were 91°C and 327.61 W. Do not expand load at 90°C without changing cooling, power, or concurrency.

What we have not measured: randomly timed 100K-token agent workloads or the concurrency point where performance falls off. The c2 and c4 results do not establish either.

5. Failures worth testing before cutover

Symptom	Cause	Narrow fix
FP8 candidate dies at startup: DeepGEMM … Unknown recipe	vLLM 0.24.0 SM120 kernel regression (issue #47130)	Isolate its image; scope VLLM_USE_DEEP_GEMM=0; leave BF16 unchanged
Thinking missing after engine swap	Client reads only reasoning or reasoning_content	Use an accessor for both; rerun smoke suite
Empty content, finish_reason=length	Thinking spent the output budget	Raise output cap or set enable_thinking: false
Long-context rerun gets faster	Prefix/radix cache is warm	Report cold prefill and warm reuse separately
DFlash + Qwen NVFP4 prefill-graph crash on other Blackwell cards	Reported RTX 5090 failure (SGLang issue #35437); not reproduced here	Pin the image digest and treat as third-party risk
GPU reaches 91°C under saturation	Cooling envelope exceeded	Stop load growth; change cooling, power, or concurrency
New lane cannot start; GPU remains full	Orphaned vLLM workers hold VRAM	Stop scoped unit; verify VRAM and port release

Bottom line

Choose BF16 vLLM as a debugging baseline. Choose NVFP4 SGLang when 141.49 serial or 408.62 c4 tok/s fits and its contract and thermal gate pass. Its correct 261,494-token retrieval still took 99.95s to first token and peaked at 91°C.

Sources

• Qwen3.8-27B model card, hybrid DeltaNet layout, 262,144 native context, MTP, YaRN guidance (fetched 21 Aug 2026)
• SGLang speculative-decoding docs, DFlash configuration and tuning (fetched 21 Aug 2026)
• vLLM issue #47130, SM120/DeepGEMM FP8 warmup regression and scoped workaround (verified live)
• SGLang issue #35437, third-party DFlash prefill-graph failure report (verified live)
• Observed artifacts: benchmark JSON, API smoke JSON, and 137-row GPU sample CSV from the 21 August 2026 run; vLLM BF16 deployment reports of 18 August 2026.
